PA3028 | IFM electronic

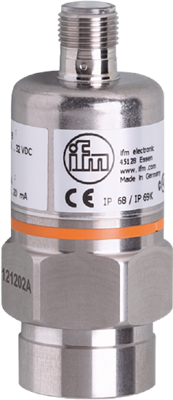

Pressure transmitter, 0-0.25 bar/0-250 mbar/0-100.3 inH2O/0-25 kPa, 9.6-32 VDC, PA3028

Order No.: 82P7571
EAN: 4021179244121
MPN:
PA3028
Series: PA
PA3028 IFM electronic Pressure Sensors
Image may differ
Unit Price (€ / pc.)
439.8716 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
439.87 € *
Price list
Quantity
Price per unit*
1 pcs.
439.8716 €
3 pcs.
428.7927 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electronic pressure sensor, PA3028, IFM electronic

Features

  • Precise linear 4...20 mA output signal
  • High repeatability and low linearity error
  • With long-term stability thanks to high overload protection
  • Robust stainless steel housing for use in harsh industrial environments
  • Large operating temperature range and high protection rating
Technical specifications
Assembly G 1/4 internal thread
Enclosure cylindrical
diameter 30 mm
Length 75 mm
Product type pressure transmitter
Version relative pressure
Voltage 9.6-32 VDC
min. operating temperature -25 °C
Connection M12-connector
measurement range 0-0.25 bar/0-250 mbar/0-100.3 inH2O/0-25 kPa
max. operating temperature 80 °C
Logistics
Country of origin RO
Customs tariff number 90262020
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
