KT5310 | IFM electronic
Piezo switch, On-Off, illuminated, red/green, PA, IP65/IP67/IP69K, KT5310
Unit Price (€ / pc.)
148.5715 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
148.57 € *
Price list
Quantity
Price per unit*
1 pcs.
148.5715 €
5 pcs.
144.9658 €
10 pcs.
141.5743 €
*incl. VAT plus shipping costs
Subject to prior sale

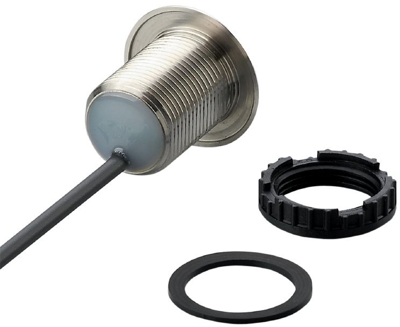

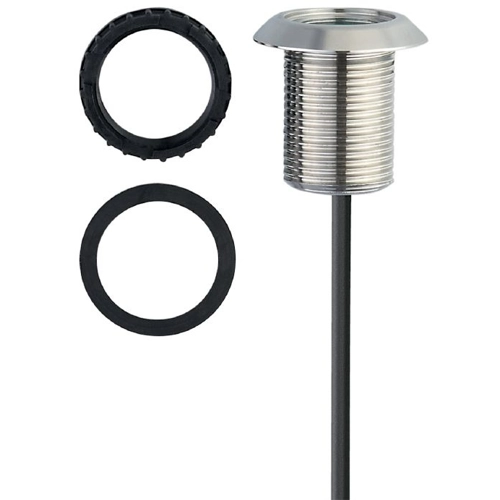

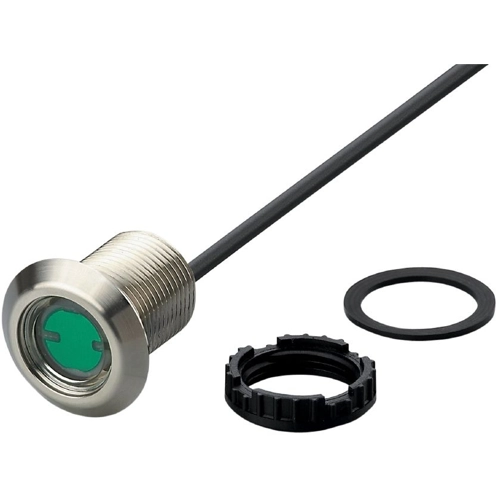

Illuminated capacitive touch sensor, KT5310, IFM
The KT5310 is a illuminated capacitive touch sensor with non-contact switching without mechanical pressure. Also it has a high protection rating for the requirements of harsh industrial environments. Working principle: static.
Features
- Static evaluation principle protects against unauthorised use
- Use in applications with regular cleaning
- Robust, impact and scratch resistant stainless steel housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cable 2 m | |
| Lighting voltage | 12-30 VDC | |
| Farbe der Beleuchtung | red/green | |
| Latching switching function | On-Off | |
| Degree of protection (IP) | IP65/IP67/IP69K | |
| Color of body | black | |
| illuminated | Yes | |
| switching current | 30 mA | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
