KT5009 | IFM electronic
Piezo switch, On-Off, illuminated, red/green, ABS/PC, IP67/IP69K, KT5009
As a private customer, you can buy this item as soon as we have it back in stock.

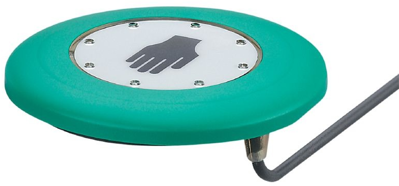

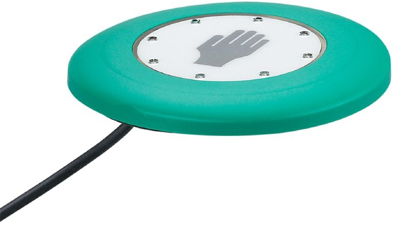

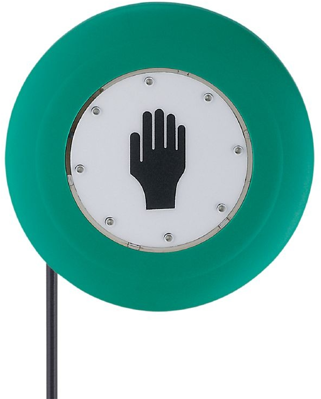

Capacitive touch sensor, KT5009, IFM
The KT5009 is a capacitive touch sensor with non-contact switching without mechanical pressure. Working principle: dynamic.
Features
- LEDs for visual feedback
- Oil-resistant, impact and scratch resistant
- Wear-free and maintenance-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | On-Off | |
| illuminated | Yes | |
| Farbe der Beleuchtung | red/green | |
| Connection | cable 2 m | |
| Shell Material | ABS/PC | |
| Color of body | black | |
| Degree of protection (IP) | IP67/IP69K | |
| switching current | 30 mA | |
| Lighting voltage | 12-30 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
