E10754 | IFM electronic

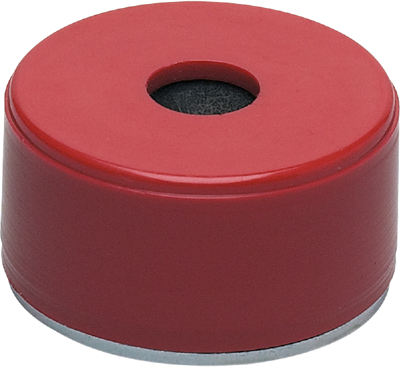

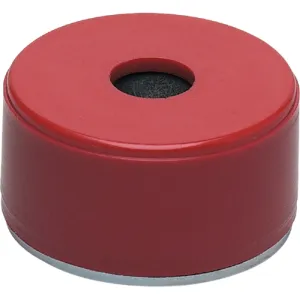

Damping magnet, hard ferrite, (Ø x H) 35 x 18.7 mm, E10754
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
39.0439 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
39.04 € *
Price list
Quantity
Price per unit*
1 pcs.
39.0439 €
3 pcs.
37.1875 €
5 pcs.
34.9741 €
10 pcs.
33.0225 €
*incl. VAT plus shipping costs
Subject to prior sale
Damping magnet, E10754, IFM electronic
Features
- For ensuring a long sensing range
- For use in combination with magnetic sensors
- Hidden installation behind aluminium or stainless steel is possible
- Wide operating temperature range
- Not suitable for air freight
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | hard ferrite | |
| Remanence | 0.05 T | |
| diameter | 35 mm | |
| Height | 18.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85051910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
