OT5017 | IFM electronic
Reflecting light barrier, 0.2-2 m, PNP, 10-50 VDC, M12-connector, IP65, OT5017
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
394.1161 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
394.12 € *
Price list
Quantity
Price per unit*
1 pcs.
394.1161 €
3 pcs.
384.1796 €
*incl. VAT plus shipping costs
Subject to prior sale

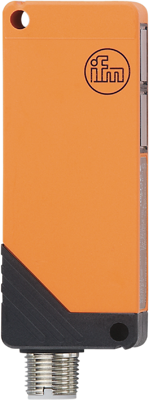

Retro-reflective sensor, OT5017, IFM electronic
Features
- Compact housing for use where space is restricted
- Programmable light-on/dark-on mode
- Intuitive setting of the sensitivity via potentiometer
- With polarisation filter
- LED display to check switching status and operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reflecting light barrier | |
| Detecting distance | 0.2-2 m | |
| Output | PNP | |
| Design | A | |
| Connection | M12-connector | |
| Voltage | 10-50 VDC | |
| Power supply | 35 mA | |
| Switching logic | light ON/dark ON (programmable) | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
