OT5009 | IFM electronic
One way light barrier, 10 m, PNP, 10-50 VDC, M12-connector, IP65, OT5009
Order No.: 82P7338
EAN: 4021179179553
MPN:
OT5009
Unit Price (€ / pc.)
283.3509 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
283.35 € *
Price list
Quantity
Price per unit*
1 pcs.
283.3509 €
3 pcs.
275.9253 €
*incl. VAT plus shipping costs
Subject to prior sale

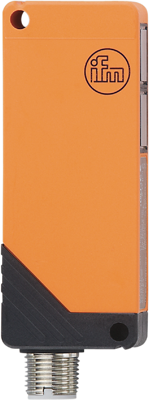

Through-beam sensor, OT5009, IFM electronic
Features
- Compact housing for use where space is restricted
- Programmable light-on/dark-on mode
- Intuitive setting of the sensitivity via potentiometer
- Very long range
- LED display to check switching status and operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON/dark ON (programmable) | |
| Detecting distance | 10 m | |
| Degree of protection (IP) | IP65 | |
| Power supply | 30 mA | |
| Output | PNP | |
| Connection | M12-connector | |
| Design | A | |
| Voltage | 10-50 VDC | |
| Product type | one way light barrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
