OT5003 | IFM electronic
Diffuse sensor, 4-200 mm, PNP, 10-50 VDC, M12-connector, IP65, OT5003
Order No.: 82P7336
EAN: 4021179179492
MPN:
OT5003
Unit Price (€ / pc.)
400.3636 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
400.36 € *
Price list
Quantity
Price per unit*
1 pcs.
400.3636 €
3 pcs.
390.2724 €
*incl. VAT plus shipping costs
Subject to prior sale

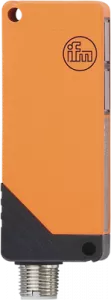

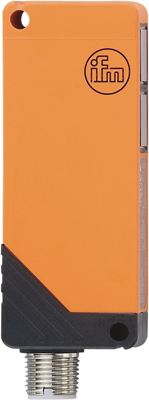

Diffuse reflection sensor, OT5003, IFM electronic
Features
- Compact housing for use where space is restricted
- Programmable light-on/dark-on mode
- Intuitive setting of the sensitivity via potentiometer
- For use at short range
- LED display to check switching status and operation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 4-200 mm | |
| Degree of protection (IP) | IP65 | |
| Output | PNP | |
| Product type | diffuse sensor | |
| Design | A | |
| Voltage | 10-50 VDC | |
| Power supply | 40 mA | |
| Connection | M12-connector | |
| Switching logic | light ON/dark ON (programmable) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
