OJ5149 | IFM electronic
Diffuse sensor, 15-400 mm, NPN, 10-30 VDC, M8-connector, IP67, OJ5149
Order No.: 82P7280
EAN: 4021179228688
MPN:
OJ5149
Unit Price (€ / pc.)
207.6431 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
207.64 € *
Price list
Quantity
Price per unit*
1 pcs.
207.6431 €
3 pcs.
202.2048 €
*incl. VAT plus shipping costs
Subject to prior sale

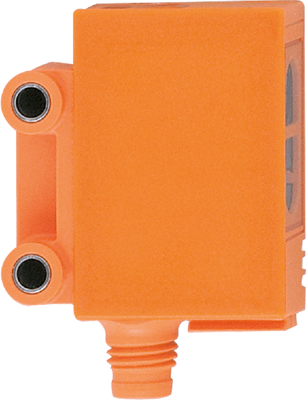

Diffuse reflection sensor, OJ5149, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Precise background suppression
- Simple alignment due to visible red light
- Intuitive setting of sensitivity and output function
- Fast mounting by means of mounting holes with robust stainless steel sleeve
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 15-400 mm | |
| Degree of protection (IP) | IP67 | |
| Output | NPN | |
| Product type | diffuse sensor | |
| Design | A | |
| Voltage | 10-30 VDC | |
| Power supply | 25 mA | |
| Connection | M8-connector | |
| Switching logic | light ON/dark ON (programmable) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
