OGT200 | IFM electronic
Diffuse sensor, 2-600 mm, PNP, 10-36 VDC, M12-connector, IP65, OGT200
Unit Price (€ / pc.)
145.5370 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
145.54 € *
Price list
Quantity
Price per unit*
1 pcs.
145.5370 €
3 pcs.
141.5148 €
5 pcs.
137.6949 €
*incl. VAT plus shipping costs
Subject to prior sale

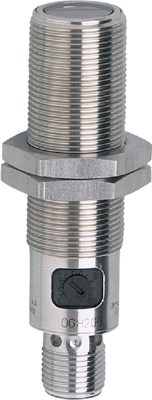

Diffuse reflection sensor, OGT200, IFM electronic
Features
- Robust stainless steel housing for use in harsh industrial environments
- Very long range
- Intuitive setting of the sensitivity via potentiometer
- Wide range of fixing components for quick and easy mounting
- Excellent price/performance ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | diffuse sensor | |
| Detecting distance | 2-600 mm | |
| Output | PNP | |
| Design | A | |
| Connection | M12-connector | |
| Voltage | 10-36 VDC | |
| Power supply | 20 mA | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
