OGP101 | IFM electronic
Reflecting light barrier, 0.05-2.5 m, PNP, 10-30 VDC, M12-connector, IP67, OGP101
Unit Price (€ / pc.)
88.9406 € *
Available: 1 pcs.
Total Price:
88.94 € *
Price list
Quantity
Price per unit*
1 pcs.
88.9406 €
5 pcs.
86.6558 €
10 pcs.
84.4900 €
*incl. VAT plus shipping costs
Subject to prior sale

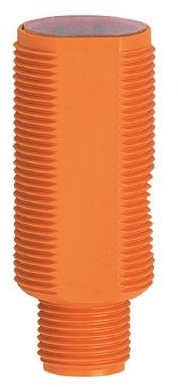

Retro-reflective sensor, OGP101, IFM
The OGP101 is a retro-reflective sensor with very long range for use in conveying and materials handling.
Features
- Ready for operation immediately thanks to fixed setting
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON | |
| Power supply | 20 mA | |
| Connection | M12-connector | |
| Output | PNP | |
| Product type | reflecting momentary pushbutton | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Design | A | |
| Detecting distance | 0.05-2.5 m |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
