OGP100 | IFM electronic
Reflecting light barrier, 0.05-2.5 m, PNP, 10-30 VDC, M12-connector, IP67, OGP100
Order No.: 81P9303
EAN: 4021179243056
MPN:
OGP100
Unit Price (€ / pc.)
69.1985 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
69.20 € *
Price list
Quantity
Price per unit*
1 pcs.
69.1985 €
5 pcs.
65.9974 €
10 pcs.
63.0819 €
*incl. VAT plus shipping costs
Subject to prior sale

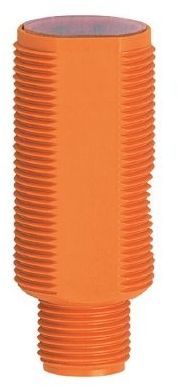

Retro-reflective sensor, OGP100, IFM
The OGP100 is a retro-reflective sensor with very long range for use in conveying and materials handling.
Features
- Ready for operation immediately thanks to fixed setting
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Design | A | |
| Output | PNP | |
| Detecting distance | 0.05-2.5 m | |
| Connection | M12-connector | |
| Product type | reflecting momentary pushbutton | |
| Switching logic | dark ON | |
| Power supply | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
