OGH312 | IFM electronic
Diffuse sensor, 15-300 mm, PNP, 10-36 VDC, M12-connector, IP65/IP67/IP68/IP69K, OGH312
As a private customer, you can buy this item as soon as we have it back in stock.

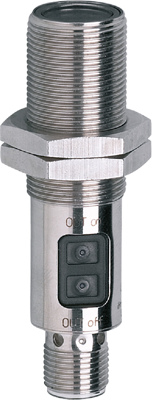

Diffuse reflection sensor, OGH312, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Intuitive setting of sensitivity and output function
- Precise background suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON/dark ON (programmable) | |
| Connection | M12-connector | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Design | A | |
| Power supply | 25 mA | |
| Detecting distance | 15-300 mm | |
| Output | PNP | |
| Product type | diffuse sensor | |
| Voltage | 10-36 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
