OG5126 | IFM electronic
Reflecting light barrier, 3 m, PNP, 10-30 VDC, M12-connector, IP68, OG5126
Unit Price (€ / pc.)
206.5126 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
206.51 € *
Price list
Quantity
Price per unit*
1 pcs.
206.5126 €
3 pcs.
201.0981 €
*incl. VAT plus shipping costs
Subject to prior sale

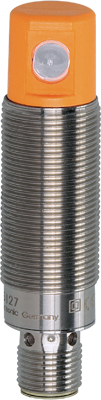

Retro-reflective sensor, OG5126, IFM electronic
Features
- Particularly space-saving design with light emission on the side
- For use where space is restricted
- Ready for operation immediately thanks to fixed setting
- Simple alignment due to visible red light
- Very long range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reflecting light barrier | |
| Detecting distance | 3 m | |
| Output | PNP | |
| Design | A | |
| Connection | M12-connector | |
| Voltage | 10-30 VDC | |
| Power supply | 22 mA | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
