Diffuse sensor, 30-130 mm, PNP, 10-36 VDC, M12-connector, IP68/IP69K, OG5119
Unit Price (€ / pc.)
232.1214 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
232.12 € *
Price list
Quantity
Price per unit*
1 pcs.
232.1214 €
3 pcs.
226.0286 €
*incl. VAT plus shipping costs
Subject to prior sale

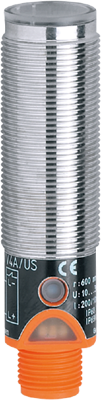

Diffuse reflection sensor, OG5119, IFM electronic
Features
- Robust stainless steel housing for use in harsh industrial environments
- Precise background suppression
- Intuitive setting of the sensitivity via pushbutton
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | diffuse sensor | |
| Detecting distance | 30-130 mm | |
| Output | PNP | |
| Design | A | |
| Connection | M12-connector | |
| Voltage | 10-36 VDC | |
| Power supply | 40 mA | |
| Switching logic | light ON/dark ON (programmable) | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
