OF5062 | IFM electronic
Reflecting light barrier, 0.2-0.8 m, NPN, 10-36 VDC, M12-connector, IP65, OF5062
Order No.: 82P7080
EAN: 4021179172974
MPN:
OF5062
Unit Price (€ / pc.)
218.9481 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
218.95 € *
Price list
Quantity
Price per unit*
1 pcs.
218.9481 €
3 pcs.
213.2123 €
*incl. VAT plus shipping costs
Subject to prior sale

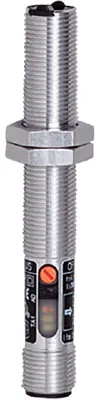

Retro-reflective sensor, OF5062, IFM electronic
Features
- Intuitive setting of the sensitivity via potentiometer
- With function check output to signal soiling or maladjustment
- Robust metal housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 0.2-0.8 m | |
| Degree of protection (IP) | IP65 | |
| Output | NPN | |
| Product type | reflecting light barrier | |
| Design | A | |
| Voltage | 10-36 VDC | |
| Power supply | 35 mA | |
| Connection | M12-connector | |
| Switching logic | light ON/dark ON (programmable) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
