OF5022 | IFM electronic
One way light barrier, 4 m, PNP, 10-36 VDC, M12-connector, IP65, OF5022
Order No.: 82P7069
EAN: 4021179172578
MPN:
OF5022
Unit Price (€ / pc.)
182.7126 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
182.71 € *
Price list
Quantity
Price per unit*
1 pcs.
182.7126 €
3 pcs.
177.9288 €
*incl. VAT plus shipping costs
Subject to prior sale

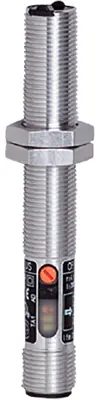

Through-beam sensor, OF5022, IFM electronic
Features
- Intuitive setting of the sensitivity via potentiometer
- With function check output to signal soiling or maladjustment
- Robust metal housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON/dark ON (programmable) | |
| Detecting distance | 4 m | |
| Degree of protection (IP) | IP65 | |
| Power supply | 30 mA | |
| Output | PNP | |
| Connection | M12-connector | |
| Design | A | |
| Voltage | 10-36 VDC | |
| Product type | one way light barrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
