OA5104 | IFM electronic
Reflecting light barrier, 0.25-10 m, PNP/NPN, 10-36 VDC, connection terminal 1.5 mm², IP65, OA5104
Order No.: 82P7051
EAN: 4021179171021
MPN:
OA5104
Unit Price (€ / pc.)
348.9437 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
348.94 € *
Price list
Quantity
Price per unit*
1 pcs.
348.9437 €
3 pcs.
340.1496 €
*incl. VAT plus shipping costs
Subject to prior sale

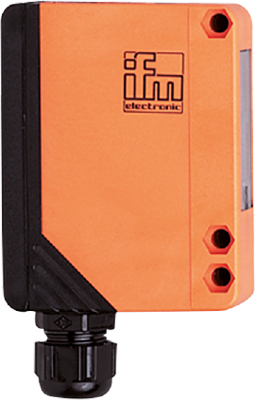

Retro-reflective sensor, OA5104, IFM electronic
Features
- Very long range
- Intuitive setting of sensitivity and duration of switching delay
- Programmable light-on/dark-on mode
- With function check output to signal soiling or maladjustment
- LED display to check operation, switching status and function
Technical specifications
| Detecting distance | 0.25-10 m | |
| Degree of protection (IP) | IP65 | |
| Output | PNP/NPN | |
| Product type | reflecting light barrier | |
| Voltage | 10-36 VDC | |
| Power supply | 50 mA | |
| Connection | connection terminal 1.5 mm² | |
| Switching logic | light ON/dark ON (programmable) |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
