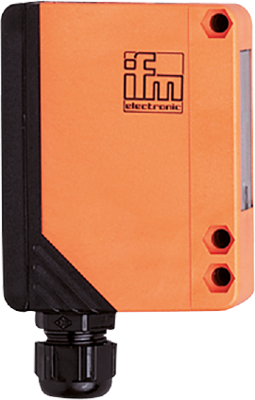

OA5102 | IFM electronic
One way light barrier, 50 m, PNP/NPN, 10-36 VDC, connection terminal 1.5 mm², IP65, OA5102
Order No.: 82P7050
EAN: 4021179171007
MPN:
OA5102
Unit Price (€ / pc.)
289.8364 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
289.84 € *
Price list
Quantity
Price per unit*
1 pcs.
289.8364 €
3 pcs.
282.2442 €
*incl. VAT plus shipping costs
Subject to prior sale
Through-beam sensor, OA5102, IFM electronic
Features
- Very long range
- Intuitive setting of sensitivity and duration of switching delay
- Programmable light-on/dark-on mode
- With function check output to signal soiling or maladjustment
- LED display to check operation, switching status and function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON/dark ON (programmable) | |
| Detecting distance | 50 m | |
| Degree of protection (IP) | IP65 | |
| Power supply | 50 mA | |
| Output | PNP/NPN | |
| Connection | connection terminal 1.5 mm² | |
| Voltage | 10-36 VDC | |
| Product type | one way light barrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
