O8P204 | IFM electronic
Reflecting light barrier, 0.02-1.8 m, PNP, 10-30 VDC, M8-connector, IP65/IP67, O8P204
Unit Price (€ / pc.)
143.4545 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
143.45 € *
Price list
Quantity
Price per unit*
1 pcs.
143.4545 €
3 pcs.
139.4799 €
5 pcs.
135.7195 €
*incl. VAT plus shipping costs
Subject to prior sale

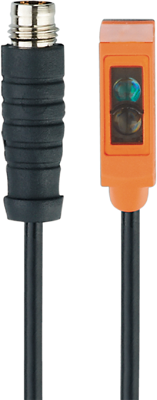

Retro-reflective sensor, O8P204, IFM electronic
Features
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Precise detection of very small, very flat or highly reflective components
- Very long range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 10-30 VDC | |
| Output | PNP | |
| Connection | M8-connector | |
| Product type | reflecting light barrier | |
| Detecting distance | 0.02-1.8 m | |
| Power supply | 20 mA | |
| Switching logic | light ON/dark ON (programmable) | |
| Degree of protection (IP) | IP65/IP67 | |
| Design | A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
