O7E202 | IFM electronic
One way light barrier, 1.5 m, NPN, 10-30 VDC, M8-connector, IP65, O7E202
Order No.: 82P6973
EAN: 4021179256001
MPN:
O7E202
Unit Price (€ / pc.)
116.2273 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
116.23 € *
Price list
Quantity
Price per unit*
1 pcs.
116.2273 €
3 pcs.
113.0143 €
5 pcs.
109.9679 €
*incl. VAT plus shipping costs
Subject to prior sale

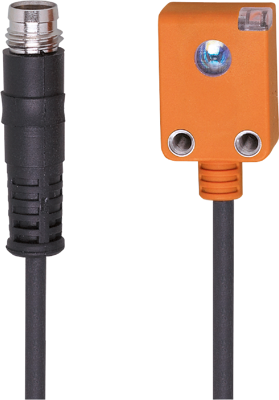

Through-beam sensor, O7E202, IFM electronic
Features
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Ready for operation immediately thanks to fixed setting
- Very long range
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | dark ON | |
| Detecting distance | 1.5 m | |
| Degree of protection (IP) | IP65 | |
| Power supply | 10 mA | |
| Output | NPN | |
| Connection | M8-connector | |
| Design | A | |
| Voltage | 10-30 VDC | |
| Product type | one way light barrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | SG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
