O6E216 | IFM electronic
One way light barrier, 15 m, NPN, 10-30 VDC, M8-connector, IP65/IP67, O6E216
Order No.: 82P6837
EAN: 4021179288958
MPN:
O6E216
Unit Price (€ / pc.)
90.8803 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
90.88 € *
Price list
Quantity
Price per unit*
1 pcs.
90.8803 €
3 pcs.
86.9414 €
5 pcs.
83.3238 €
*incl. VAT plus shipping costs
Subject to prior sale

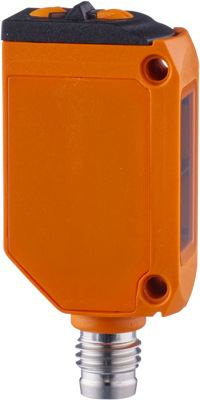

Through-beam sensor, O6E216, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Very long range independent of the object colour
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching logic | light ON/dark ON | |
| Detecting distance | 15 m | |
| Degree of protection (IP) | IP65/IP67 | |
| Power supply | 7 mA | |
| Output | NPN | |
| Connection | M8-connector | |
| Design | A | |
| Voltage | 10-30 VDC | |
| Product type | one way light barrier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | SG |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
