O5K500 | IFM electronic
Contrast button, 18-22 mm, PNP/NPN, 10-36 VDC, M12-connector, IP67, O5K500
Unit Price (€ / pc.)
396.0796 € *
Standard delivery time from the manufacturer is: 1 Week

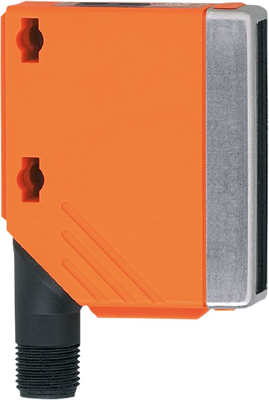

Contrast sensor, O5K500, IFM electronic
Contrast sensor, Reliable detection of print marks and particularly flat objects.
Features
- Automatic selection of the ideal colour of the transmitted light
- Easy adjustment of the device function via teach
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Activation time | 0.05 ms | |
| Voltage | 10-36 VDC | |
| Output | PNP/NPN | |
| Connection | M12-connector | |
| Product type | contrast button | |
| Detecting distance | 18-22 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Version | red light, green light, blue light, light/dark switching |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
