O5C500 | IFM electronic
Color sensor, 15-19 mm, PNP/NPN, 10-36 VDC, M12-connector, IP67, O5C500
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
593.6791 € *
Standard delivery time from the manufacturer is: 1 Week

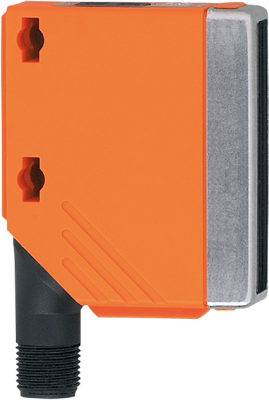

Colour sensor, O5C500, IFM electronic
Features
- Recognition, sorting and checking of objects based on their colour
- Easy adjustment of the device function via teach
- Reliable detection of colour shades
- High switching frequency for fast processes
- Extensive range of fixing components
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | color sensor | |
| Detecting distance | 15-19 mm | |
| Output | PNP/NPN | |
| Design | A | |
| Connection | M12-connector | |
| Voltage | 10-36 VDC | |
| Power supply | 50 mA | |
| Activation time | 300 ms | |
| Switching logic | light ON/dark ON (programmable) | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
