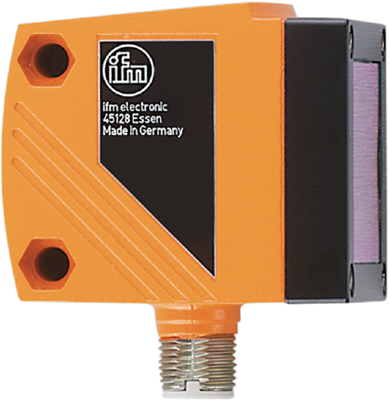

O1D155 | IFM electronic
Laser distance sensor, 0.3-6 m, PNP, Form A (N/O) / Form B (N/C) (programmable), 10-30 VDC, M12-connector, IP67, O1D155
Unit Price (€ / pc.)
504.0483 € *
Standard delivery time from the manufacturer is: 1 Week
Photoelectric distance sensor, O1D155, IFM electronic
Features
- Reliable optical distance measurement with high ranges up to 6 m
- Two switching outputs, one of them programmable as analogue output
- Scalable measuring range and window function
- Laser protection class 1 for the requirements of the automotive industry
- Excellent price/performance ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | distance sensor | |
| Detecting distance | 0.3-6 m | |
| Output | PNP, Form A (N/O) / Form B (N/C) (programmable) | |
| Design | A | |
| Connection | M12-connector | |
| Voltage | 10-30 VDC | |
| Power supply | 150 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
