O1D108 | IFM electronic
Laser distance sensor, 0.2-18 m, PNP, Form A (N/O) / Form B (N/C) (programmable), 10-30 VDC, M12-connector, IP67, O1D108
Order No.: 82P6750
EAN: 4021179299244
MPN:
O1D108
Unit Price (€ / pc.)
523.2668 € *
Standard delivery time from the manufacturer is: 1 Week

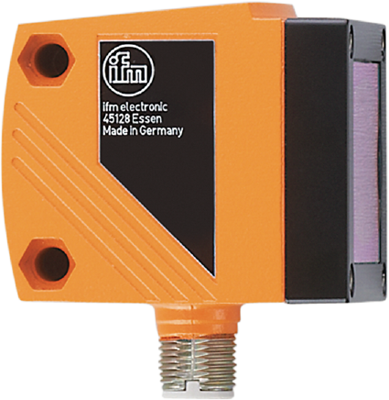

Photoelectric distance sensor, O1D108, IFM electronic
Features
- Reliable optical distance measurement with background suppression
- Two switching outputs, one of them programmable as analogue output
- Scalable measuring range and window function
- Use in applications with background suppression
- Excellent price/performance ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 0.2-18 m | |
| Degree of protection (IP) | IP67 | |
| Power supply | 150 mA | |
| Output | PNP, Form A (N/O) / Form B (N/C) (programmable) | |
| Connection | M12-connector | |
| Design | A | |
| Voltage | 10-30 VDC | |
| Product type | distance sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
