O1D100 | IFM electronic
Laser distance sensor, 0.2-10 m, PNP, 18-30 VDC, M12-connector, IP67, O1D100
Order No.: 81P9311
EAN: 4021179182034
MPN:
O1D100
Unit Price (€ / pc.)
481.4383 € *
Standard delivery time from the manufacturer is: On Request

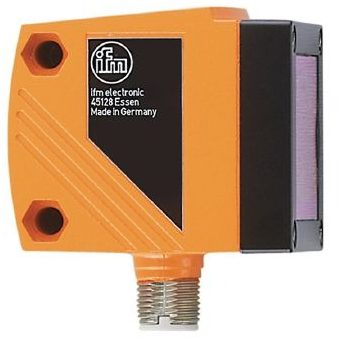

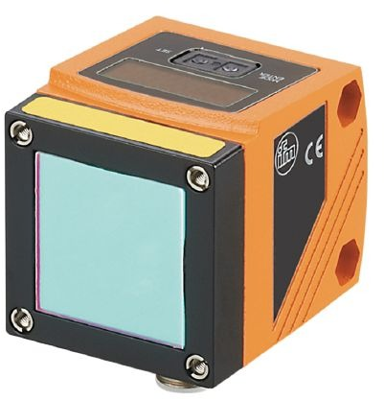

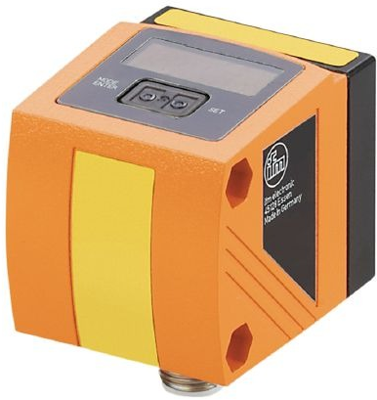

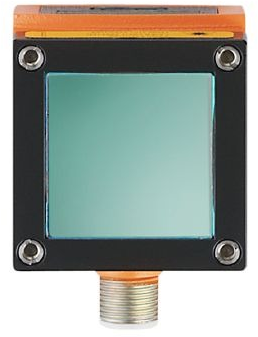

Photoelectric distance sensor, O1D100, IFM
The O1D100 is a photoelectric distance sensor for use in applications with background suppression. This product has a reliable optical distance measurement with high ranges up to 10 m.
Features
- Two switching outputs, one of them programmable as analogue output
- Scalable measuring range and window function
- Excellent price/performance ratio
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power supply | 150 mA | |
| Design | A | |
| Connection | M12-connector | |
| Product type | distance sensor | |
| Detecting distance | 0.2-10 m | |
| Voltage | 18-30 VDC | |
| Output | PNP | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
