VWV002 | IFM electronic
Vibration sensor, 3.6 VDC, VWV002
Order No.: 82P8900
EAN: 4021179327541
MPN:
VWV002
Unit Price (€ / pc.)
440.8236 € *
Standard delivery time from the manufacturer is: 1 Week

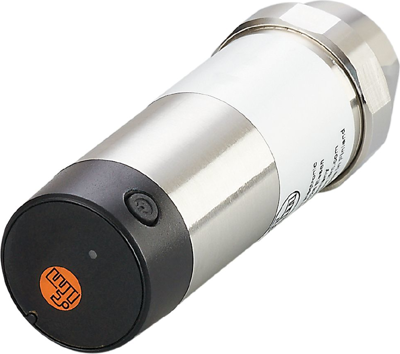

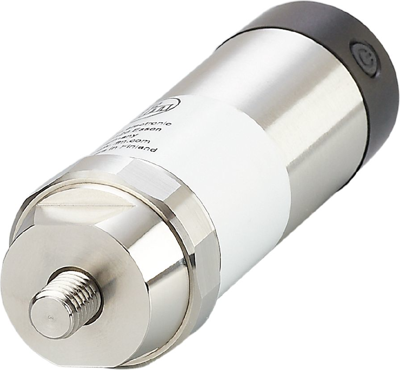

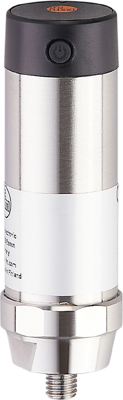

Wireless vibration sensor, VWV002, IFM electronic
Wireless vibration sensor, Reliable and intermittent monitoring of the total vibration according to DIN ISO 10816.
Features
- Quick integration via battery operation and radio communication
- For communication with a gateway for wireless vibration sensors
- Robust housing for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | vibration sensor | |
| Length | 97 mm | |
| Detection range | 0 to 25 mm/s, -16 to 16 g, 10 to 1000 Hz | |
| Voltage | 3.6 VDC | |
| Version | wireless | |
| Assembly | screw mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FI |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
