VVB011 | IFM electronic
Vibration sensor, 18-30 VDC, VVB011
Order No.: 82P8795
EAN: 4021179321587
MPN:
VVB011
Unit Price (€ / pc.)
632.3898 € *
Standard delivery time from the manufacturer is: 1 Week

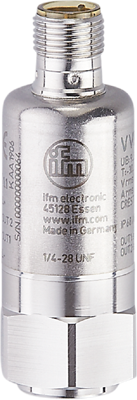

Vibration sensor, VVB011, IFM electronic
Features
- Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state
- Large operating temperature range and high protection rating for the requirements of harsh industrial environments
- Reliable and permanent monitoring of characteristic values incl. raw data acquisition
- Integration in Industrial Ethernet systems without control cabinet and complex wiring
- Asynchronous transmission of raw data (BLOB) and integrated operating hours counter
Technical specifications
| Assembly | screw mounting | |
| Length | 63.55 mm | |
| Product type | vibration sensor | |
| Version | Form A (N/O)/Form B (N/C), PNP/NPN | |
| Voltage | 18-30 VDC | |
| Connection | M12-connector |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
