RVP510 | IFM electronic
Full shaft encoder, 4.75-30 VDC, RVP510
Order No.: 82P8160
EAN: 4021179286152
MPN:
RVP510
Unit Price (€ / pc.)
390.8912 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
390.89 € *
Price list
Quantity
Price per unit*
1 pcs.
390.8912 €
3 pcs.
381.0380 €
*incl. VAT plus shipping costs
Subject to prior sale

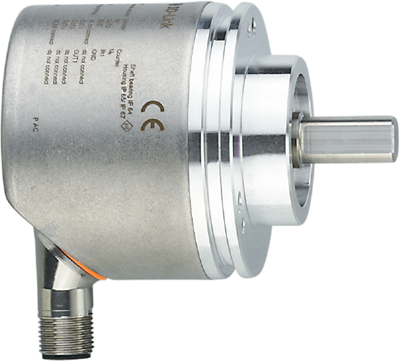

Solid shaft encoder, RVP510, IFM electronic
Features
- Can be configured as encoder, speed monitor or counter
- Clearly visible LED display with red/green colour change
- High shock and vibration resistance thanks to magnetic sensing principle
- Resolution freely programmable from 1 ... 10,000
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | full shaft encoder | |
| Length | 80.2 mm | |
| Connection | M12-connector | |
| Detection range | 1-10000 dashes | |
| Voltage | 4.75-30 VDC | |
| Version | HTL/TTL |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 90318020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
