RMO300 | IFM electronic
Multiturn hollow shaft encoder, 18-30 VDC, RMO300
Order No.: 82P8132
EAN: 4021179324229
MPN:
RMO300
Unit Price (€ / pc.)
1,044.3797 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,044.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,044.3797 €

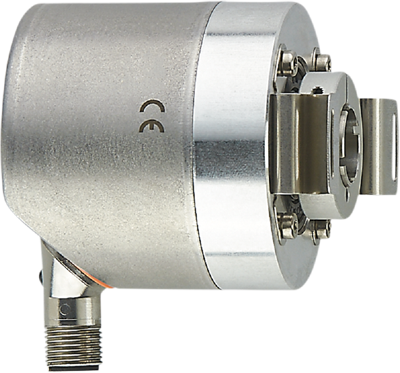

Multiturn hollow shaft encoder, RMO300, IFM electronic
Features
- Absolute position traceability even when unpowered
- Bearing operating time measurement for efficient maintenance planning
- Freely programmable total resolution up to 31 bits
- Programmable digital switching input/output
- High shock and vibration resistance thanks to magnetic sensing principle
Technical specifications
| Connection | M12-Steckverbinder | |
| Detection range | 65536 Schritte, 32768 Umdrehungen, 31 Bit | |
| Length | 69 mm | |
| Product type | Multiturn-Hohlwellendrehgeber | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90318020 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
