RM8001 | IFM electronic
Multiturn full shaft encoder, 4.5-30 VDC, RM8001
Order No.: 82P8117
EAN: 4021179272643
MPN:
RM8001
Unit Price (€ / pc.)
464.3380 € *
Standard delivery time from the manufacturer is: 1 Week

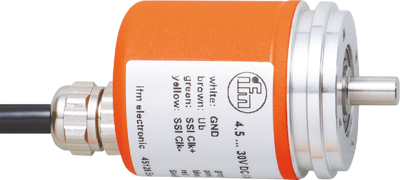

Multiturn solid shaft encoder, RM8001, IFM electronic
Features
- For precise position, speed, angular and linear measurement
- Direct output of the values via SSI interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SSI | |
| Connection | cable, PUR, 2 m | |
| Detection range | 4096 dashes, 8192 revolutions, 25 bits | |
| Voltage | 4.5-30 VDC | |
| Length | 69.5 mm | |
| Product type | multiturn full shaft encoder |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318020 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
