RM7012 | IFM electronic

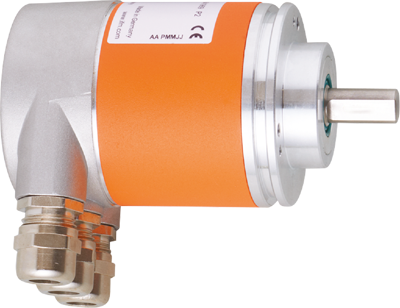

Multiturn full shaft encoder, 10-30 VDC, RM7012
Order No.: 82P8115
EAN: 4021179278409
MPN:
RM7012
Unit Price (€ / pc.)
1,125.0974 € *
Standard delivery time from the manufacturer is: 1 Week
Multiturn solid shaft encoder, RM7012, IFM electronic
Features
- For precise position, speed, angular and linear measurement
- Direct output of the values via CANopen interface
- Robust housing for use in harsh industrial environments
- High shock and vibration resistance
- Easy wiring and programming
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detection range | 8192 steps, 4096 revolutions, 25 bits | |
| Assembly | terminal block | |
| Length | 110 mm | |
| Product type | multiturn full shaft encoder | |
| Version | CANopen | |
| Voltage | 10-30 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 90318020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
