RB3500 | IFM electronic

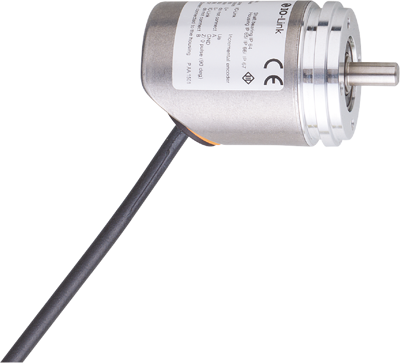

Full shaft encoder, 4.75-30 VDC, RB3500
Order No.: 82P8108
EAN: 4021179286084
MPN:
RB3500
Unit Price (€ / pc.)
303.5690 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
303.57 € *
Price list
Quantity
Price per unit*
1 pcs.
303.5690 €
3 pcs.
295.6079 €
*incl. VAT plus shipping costs
Subject to prior sale
Solid shaft encoder, RB3500, IFM electronic
Features
- Defined pulse sequence for the reliable detection of rotational speeds
- For precise position determination and linear measurement
- High shock and vibration resistance thanks to magnetic sensing principle
- Resolution freely programmable from 1 ... 10,000
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | HTL/TTL | |
| Connection | cable, 5x0.14 mm², 2 m | |
| Detection range | 1-10000 dashes | |
| Voltage | 4.75-30 VDC | |
| Length | 65 mm | |
| Product type | full shaft encoder |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318020 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
