JN2200 | IFM electronic
Tilt switch, 9.2-30 VDC, JN2200
Order No.: 82P6320
EAN: 4021179293884
MPN:
JN2200
Unit Price (€ / pc.)
613.2189 € *
Standard delivery time from the manufacturer is: 1 Week

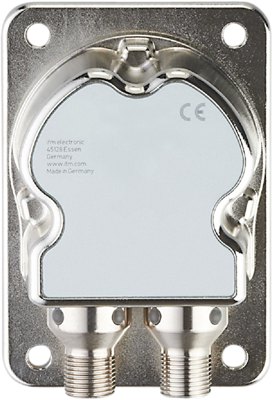

Inclination sensor, JN2200, IFM electronic
Features
- Precise measurement of angles of inclination on X and Y axes
- High measurement accuracy across the total angular range in two axes
- With two programmable switching outputs, two scalable analogue outputs and IO-Link
- Compact and robust housing
- High protection rating for the requirements of harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | tilt sensor | |
| Length | 90 mm | |
| Connection | M12-connector | |
| Voltage | 9.2-30 VDC | |
| Version | Form A (N/O)/Form B (N/C), PNP/NPN |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90318020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
