IX5010 | IFM electronic

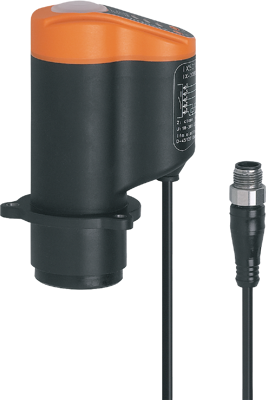

Valve lift sensor, 18-36 VDC, IX5010
Order No.: 82P6290
EAN: 4021179140638
MPN:
IX5010
Unit Price (€ / pc.)
354.0964 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
354.10 € *
Price list
Quantity
Price per unit*
1 pcs.
354.0964 €
3 pcs.
345.1714 €
*incl. VAT plus shipping costs
Subject to prior sale
Rising stem valve sensor, IX5010, IFM electronic
Features
- Position feedback for single and double seat valve and for diaphragm valves
- Freely selectable switching outputs: valve open / closed, seat lift
- Replaces three binary pulse pick-ups
- Resolution of 0.2 mm across the entire measuring range
- Programming of valve positions with pushbuttons
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 3 Form A (N/O), PNP | |
| Connection | M12-connector | |
| Assembly | 3 hole flange | |
| Detection range | 0-80 mm | |
| Voltage | 18-36 VDC | |
| Length | 110 mm | |
| Product type | valve lift sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
