DI5026 | IFM electronic
Rotation monitoring, 10-36 VDC, DI5026
Order No.: 82P1425
EAN: 4021179303323
MPN:
DI5026
Unit Price (€ / pc.)
244.3546 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
244.35 € *
Price list
Quantity
Price per unit*
1 pcs.
244.3546 €
3 pcs.
237.9643 €
*incl. VAT plus shipping costs
**Subject to prior sale

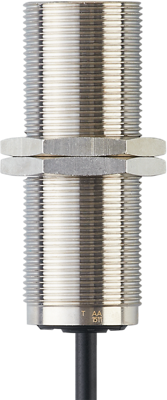

Speed monitor, DI5026, IFM electronic
Features
- 2 in 1: speed sensor and evaluation in one compact housing
- Easy setting of the switch point via potentiometer
- For direct connection to a PLC
- Reliable non-contact monitoring of the rotational speed with regard to underspeed
Technical specifications
| Detection range | 5-3600 imp/min | |
| Detecting distance | 10 mm | |
| Assembly | M30 x 1.5 | |
| Length | 80 mm | |
| Product type | Rotation monitoring | |
| Version | Form A (N/O)/Form B (N/C), PNP/NPN | |
| Voltage | 10-36 VDC | |
| Connection | cable, PUR 3x0.5 mm², 2 m |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
