DI5022 | IFM electronic

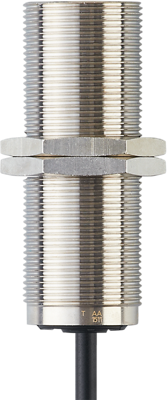

Rotation monitoring, 10-36 VDC, DI5022
Order No.: 82P1422
EAN: 4021179303309
MPN:
DI5022
Unit Price (€ / pc.)
268.6663 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
268.67 € *
Price list
Quantity
Price per unit*
1 pcs.
268.6663 €
3 pcs.
261.6215 €
*incl. VAT plus shipping costs
Subject to prior sale
Speed monitor, DI5022, IFM electronic
Features
- 2 in 1: speed sensor and evaluation in one compact housing
- Easy setting of the switch point via potentiometer
- For direct connection to a PLC
- Reduced installation complexity
- Reliable non-contact monitoring of the rotational speed with regard to underspeed
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | Rotation monitoring | |
| Length | 80 mm | |
| Detecting distance | 10 mm | |
| Connection | cable, PUR 3x0.5 mm², 2 m | |
| Detection range | 5-3600 imp/min | |
| Voltage | 10-36 VDC | |
| Version | Form A (N/O), PNP | |
| Assembly | M30 x 1.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
