DI103A | IFM electronic
Rotation monitoring, 20-250 V, DI103A
Order No.: 82P1419
EAN: 4021179295741
MPN:
DI103A
Unit Price (€ / pc.)
283.8150 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
283.82 € *
Price list
Quantity
Price per unit*
1 pcs.
283.8150 €
3 pcs.
276.3775 €
*incl. VAT plus shipping costs
Subject to prior sale

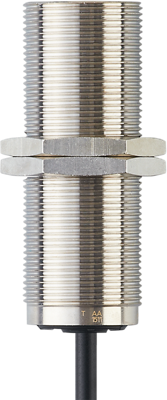

Speed monitor, DI103A, IFM electronic
Features
- For applications in hazardous areas
- Reliable non-contact monitoring of the rotational speed with regard to underspeed
- 2 in 1: speed sensor and evaluation in one compact housing
- Easy setting of the switch point via potentiometer
- For direct connection to a PLC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 10 mm | |
| Version | Form A (N/O) | |
| Connection | cable, PUR 2x0.5 mm², 2 m | |
| Assembly | M30 x 1.5 | |
| Detection range | 5-3600 imp/min | |
| Voltage | 20-250 V | |
| Length | 80 mm | |
| Product type | Rotation monitoring |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
