SM8500 | IFM electronic
Magnetic-inductive flow sensor, with display, IO-Link, PNP/NPN, 16 bar, Ø 54 mm, stainless steel/PBT-GF20/FKM/TPE/PC, SM8500
Order No.: 82P8362
EAN: 4021179311359
MPN:
SM8500
Unit Price (€ / pc.)
1,152.1699 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,152.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,152.1699 €

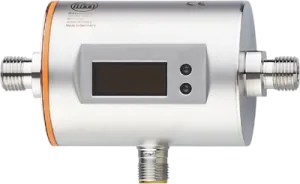

Magnetic-inductive flow meter, SM8500, IFM electronic
Features
- Precise measurement of flow, consumption and medium temperature
- High accuracy, repeatability and measurement dynamics
- With switching output, analogue output and pulse output
- Clearly visible 4-digit LED display
Technical specifications
| Degree of protection (IP) | IP67 | |
| Assembly | threaded connection Rc 1 | |
| Medium | conductive liquids/water | |
| diameter | 54 mm | |
| Product type | magnetic-inductive flow sensor | |
| Version | with display, IO-Link, PNP/NPN | |
| Shell Material | stainless steel/PBT-GF20/FKM/TPE/PC | |
| Connection | M12-connector | |
| measurement range | 0.2-100 l/min, 0.01-6 m³/h | |
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Pressure | 16 bar |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90261021 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
