SM6050 | IFM electronic
Magnetic-inductive flow sensor, IO-Link, analog signal, 16 bar, Ø 54 mm, stainless steel/PBT-GF20/FKM/TPE, SM6050
Order No.: 82P8341
EAN: 4021179212786
MPN:
SM6050
Unit Price (€ / pc.)
647.9669 € *
Standard delivery time from the manufacturer is: 1 Week

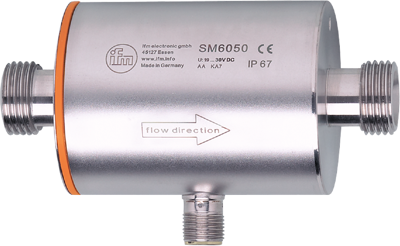

Magnetic-inductive flow meter, SM6050, IFM electronic
Features
- Precise measurement of flow and medium temperature
- High accuracy, repeatability and measurement dynamics
- With analogue output and IO-Link interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Medium | conductive liquids/water | |
| Shell Material | stainless steel/PBT-GF20/FKM/TPE | |
| Degree of protection (IP) | IP67 | |
| Version | IO-Link, analog signal | |
| Connection | M12-connector | |
| Assembly | G 1/2 external thread | |
| diameter | 54 mm | |
| measurement range | 0.1-25 l/min | |
| Pressure | 16 bar | |
| Product type | magnetic-inductive flow sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90261021 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
