SF323A | IFM electronic
Flow sensor, Ex approval, 30 bar, ceramic, SF323A
Order No.: 82P8289
EAN: 4021179211680
MPN:
SF323A
Unit Price (€ / pc.)
476.3094 € *
Standard delivery time from the manufacturer is: 1 Week

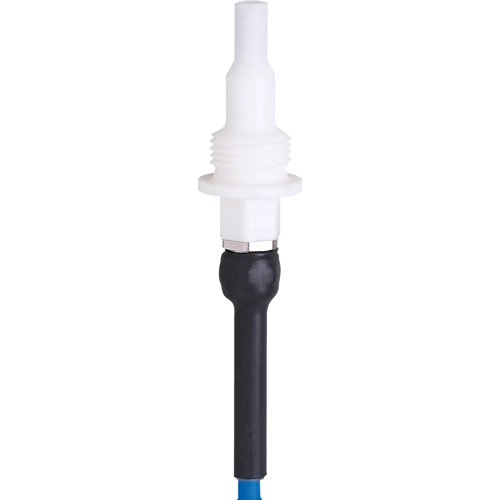

Flow sensor, SF323A, IFM electronic
Features
- For applications in hazardous areas
- Reliable monitoring of aggressive liquids in pipes
- For connection to an evaluation unit
- Ceramic materials for contact with the medium
- Robust design for use in harsh industrial environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Medium | liquids/aggressive media | |
| Shell Material | ceramic | |
| Degree of protection (IP) | IP67 | |
| Version | Ex approval | |
| Connection | cable, TPE-S 5x0.34 mm², 6 m | |
| Assembly | G 1/2 external thread | |
| measurement range | 3-60 cm/s, rod length 30 mm | |
| Pressure | 30 bar | |
| Product type | flow sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90261081 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
