SD5600 | IFM electronic
Industrial gas meter, IO-Link, PNP/NPN, 16 bar, stainless steel/PBT+PC-GF30/FKM, SD5600
Order No.: 82P8265
EAN: 4021179314800
MPN:
SD5600
Unit Price (€ / pc.)
1,382.0065 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,382.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,382.0065 €

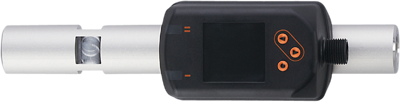

Industrial gas counter, SD5600, IFM electronic
Features
- Precise measurement of flow, consumption, pressure and medium temperature
- High accuracy, repeatability and measurement dynamics
- For detecting argon (Ar), carbon dioxide (CO2), nitrogen (N2) and compressed air
- Red/green display for clear identification of the acceptable range
- Display can be rotated for optimum alignment
Technical specifications
| Degree of protection (IP) | IP65/IP67 | |
| Assembly | threaded connection G 1/4, female thread DN8 | |
| Medium | argon, carbon dioxide, nitrogen, operating compressed air | |
| Product type | industrial gas meter | |
| Version | IO-Link, PNP/NPN | |
| Switching Voltage (DC) | 30 V | |
| Shell Material | stainless steel/PBT+PC-GF30/FKM | |
| Connection | M12-connector | |
| measurement range | 0.8-250 l/min, 0.3-82.9 m/s, 0.05-15 m³/h | |
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Pressure | 16 bar |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90268020 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
