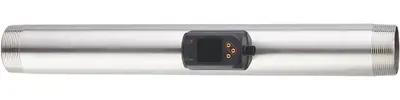

SD2501 | IFM electronic

Compressed air counter, with display, IO-Link, PNP/NPN, stainless steel/PBT+PC-GF30/FKM, SD2501

Order No.: 82P8263
EAN: 4021179314787
MPN:
SD2501
SD2501 IFM electronic Float Switches, Flow Sensors
Image may differ
Unit Price (€ / pc.)
1,695.5596 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,695.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,695.5596 €

Compressed air meter, SD2501, IFM electronic

Features

  • Precise measurement of flow, consumption, pressure and medium temperature
  • High accuracy, repeatability and measurement dynamics
  • For detecting compressed air in industrial use
  • Red/green display for clear identification of the acceptable range
  • Display can be rotated for optimum alignment
Technical specifications
Degree of protection (IP) IP65/IP67
Assembly threaded connection 2" NPT, external thread DN8
Medium operating compressed air
Product type compressed air counter
Version with display, IO-Link, PNP/NPN
Shell Material stainless steel/PBT+PC-GF30/FKM
Connection M12-connector
measurement range 80-24720 scfh, 1.5-412 scfm, 1-275.6 ft/s
Latching switching function Form A (N/O)/Form B (N/C)
Logistics
Country of origin DE
Customs tariff number 90268020
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
