SD1540 | IFM electronic
Compressed air counter, with display, IO-Link, PNP/NPN, 16 bar, stainless steel/PBT+PC-GF30/FKM, SD1540
Order No.: 82P8261
EAN: 4021179314756
MPN:
SD1540
Unit Price (€ / pc.)
1,336.5366 € *
Standard delivery time from the manufacturer is: 1 Week

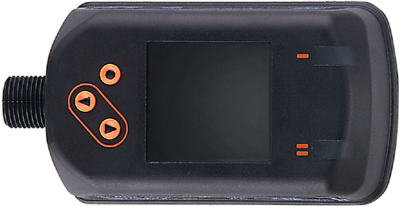

Compressed air meter, SD1540, IFM electronic
Features
- Precise measurement of flow, consumption, pressure and medium temperature
- High accuracy, repeatability and measurement dynamics
- For detecting compressed air in industrial use
- With switching output, analogue output and pulse output
- Adjustable to inside pipe diameters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Medium | operating compressed air | |
| Shell Material | stainless steel/PBT+PC-GF30/FKM | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | with display, IO-Link, PNP/NPN | |
| Connection | M12-connector | |
| Assembly | G 1 internal thread | |
| measurement range | 0.6-143.9 m/s, 0.3-26260 m³/h, 0.005-437.6 m³/min | |
| Pressure | 16 bar | |
| Product type | compressed air counter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90268020 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
