SBN246 | IFM electronic
Flow sensor, with display, IO-Link, 25 bar, stainless steel/PBT+PC-GF30/PBT-GF20/PC/brass, SBN246
Order No.: 82P8226
EAN: 4021179292733
MPN:
SBN246
Unit Price (€ / pc.)
481.9738 € *
Standard delivery time from the manufacturer is: 1 Week

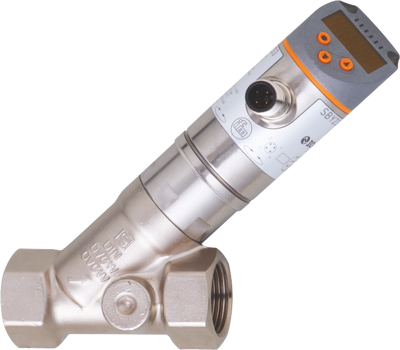

Mechatronic flow meter, SBN246, IFM electronic
Features
- Precise detection of flow in pipes
- Suitable for water, oils and glycol solutions
- Precise linearized analogue output
- Robust housing with very high pressure rating
- Lifespan of more than 10 million pressure cycles
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Medium | liquids/water/glycol solutions/cooling lubricants | |
| Shell Material | stainless steel/PBT+PC-GF30/PBT-GF20/PC/brass | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | with display, IO-Link | |
| Connection | M12-connector | |
| Assembly | 1" NPT internal thread | |
| measurement range | 30-1620 gph | |
| Pressure | 25 bar | |
| Product type | flow sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365019 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
