SA4314 | IFM electronic

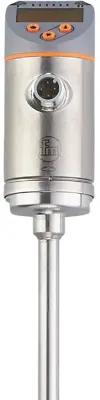

Flow sensor, with display, analog signal, 50 bar, Ø 8 mm, stainless steel, SA4314
Order No.: 82P8171
EAN: 4021179312073
MPN:
SA4314
Unit Price (€ / pc.)
552.2314 € *
Standard delivery time from the manufacturer is: 1 Week
Flow sensor, SA4314, IFM electronic
Features
- Measurement of flow and temperature at the same time
- Optimised for water, oils and air
- Clearly visible 4-digit LED display
- With two scalable analogue outputs
- The process connection can be rotated for optimum alignment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Medium | water/oils/glycol solutions/air | |
| Shell Material | stainless steel | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | with display, analog signal | |
| Connection | M12-connector | |
| Assembly | clamp adaptation Ø 8 mm | |
| diameter | 8 mm | |
| measurement range | -4-212 °F, 0.15-9.85 ft/s, 98-328 ft/s. rod length 200 mm | |
| Pressure | 50 bar | |
| Product type | flow sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90261021 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
