SA4114 | IFM electronic
Flow sensor, with display, analog signal, 50 bar, Ø 8 mm, stainless steel, SA4114
Unit Price (€ / pc.)
533.3223 € *
Standard delivery time from the manufacturer is: 1 Week

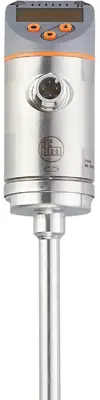

Flow sensor, SA4114, IFM electronic
Features
- Measurement of flow and temperature at the same time
- Optimised for water, oils and air
- Clearly visible 4-digit LED display
- With two scalable analogue outputs
- The process connection can be rotated for optimum alignment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure | 50 bar | |
| Medium | water/oils/glycol solutions/air | |
| diameter | 8 mm | |
| Connection | M12-connector | |
| Shell Material | stainless steel | |
| measurement range | -4-212°F, 0-7.95 ft/s m/s, 0-264 ft/s, rod length 100 mm | |
| Product type | flow sensor | |
| Assembly | clamp adaptation Ø 8 mm | |
| Degree of protection (IP) | IP65/IP67 | |
| Version | with display, analog signal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90261021 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
