LK3124 | IFM electronic

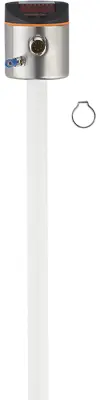

Liquid level sensor, IO-Link, PNP/NPN, 0.5 bar, Ø 16 mm, stainless steel, LK3124
Order No.: 82P6472
EAN: 4021179149808
MPN:
LK3124
Unit Price (€ / pc.)
714.0595 € *
Standard delivery time from the manufacturer is: 1 Week
Electronic level sensor, LK3124, IFM electronic
Features
- For the reliable level control in tanks and containers
- Suitable for water, oils and coolants
- Clearly visible 4-digit LED display
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | Form A (N/O)/Form B (N/C) | |
| Medium | water-based cooling lubricants/oils/water/water-like media | |
| Shell Material | stainless steel | |
| Degree of protection (IP) | IP67 | |
| Version | IO-Link, PNP/NPN | |
| Connection | M12-connector | |
| diameter | 16 mm | |
| measurement range | 585 mm, rod length 728 mm | |
| Pressure | 0.5 bar | |
| Product type | liquid level sensor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90261029 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
