LI2243 | IFM electronic

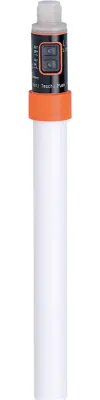

Liquid level sensor, PNP, capacitive, 0.5 bar, Ø 16 mm, PP-GF30/TPE-U, LI2243
Unit Price (€ / pc.)
371.5894 € *
Standard delivery time from the manufacturer is: 1 Week
Level sensor / leakage sensor, LI2243, IFM electronic
Level sensor / leakage sensor for the reliable point level monitoring in tanks and containers.
Features
- Easy empty and full adjustment by pressing just one pushbutton
- Suitable for water, oils and coolants
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | binary leakage probe | |
| Version | PNP, capacitive | |
| measurement range | 31 mm, rod length 481 mm | |
| Latching switching function | Form B (N/C) | |
| Shell Material | PP-GF30/TPE-U | |
| Pressure | 0.5 bar | |
| diameter | 16 mm | |
| Medium | water-based cooling lubricants/oils/water/water-like media | |
| Degree of protection (IP) | IP65/IP67 | |
| Connection | M12-connector |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90261029 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
