DN4032 | IFM electronic
Power supply, 24 to 28 VDC, 5 A (4.3 to 5 A), 120 W, DN4032
Unit Price (€ / pc.)
353.4062 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
353.41 € *
Price list
Quantity
Price per unit*
1 pcs.
353.4062 €
3 pcs.
344.5050 €
*incl. VAT plus shipping costs
Subject to prior sale

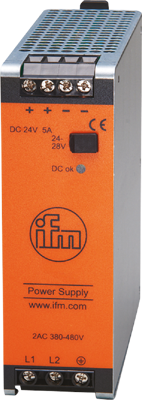

Switched-mode power supply , DN4032, IFM electronic
Features
- For the regulated power supply for controllers, sensors, actuators, and industrial electronics
- Low power loss thanks to high efficiency
- High mains buffering time
- Particularly space-saving design
- High power reserves
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 5 A | |
| Range of Output Currence | 4.3 to 5 A | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 380-480 VAC | |
| Power | 120 W | |
| efficiency | 90.4 % | |
| Degree of protection (IP) | IP20 | |
| Width | 40 mm | |
| Height | 124 mm | |
| Depth | 122.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
